Description
Efficient Cooling Technology
The exclusive use of high-quality and internationally accepted and of the titanium heat exchanger, ensures high performance and low energy consumption. The set of technologies used allow you to achieve the highest COP – coefficient of performance and the lowest noise levels
Digital Thermostat
he setting of functions is intuitive and the temperature reading is accurate, resolution 0.1°C/1°F. The setting range is 5°C – 30°C (41°F – 86°F) and the temperature is kept constant with a maximum differential of 0.5°C/0.5°F. Displayed temperature is in °C or °F and there are security alarms.
Efficient Design
The chiller, with its innovative design, is characterized by a solid structure designed to guarantee a perfect protection against rust. The user will appreciate the functionality of the shape and the compact size also adaptable to confined spaces.
Unique Features
Innovative TECOair system: a system that, thanks to the conveyor rotation, assure to the chiller an optimal air exchange and heat expulsion from the cabinet; Magnetic filter for quick maintenance; R290 environmentally friendly gas that reduce power consumption with increased performance and COP; Designed for TECOnnect Wi-Fi.
TK 500 Aquarium Chiller
| Power supply | Water temp | Liters | US Gallons | COP*** |
|---|---|---|---|---|
| 50Hz | 25°C* | 500 | 130 | 1,83 |
| 50Hz | 8°C** | 100 | 250 | 1,09 |
* The values reported in the table refer to the following conditions: room temp. 30°C, heating load of 0.3 w/lt.
** The values reported in the table refer to the following conditions: room temp. 30°C, heating load of 0.1 w/lt.
*** Coefficient of performance.
** The values reported in the table refer to the following conditions: room temp. 30°C, heating load of 0.1 w/lt.
*** Coefficient of performance.
| Power Supply | Power Consumption | Gas | Weight | Ambient temperature |
|---|---|---|---|---|
| 50Hz | 240W | R290 | 36,4 lb | 10°C – 38°C |
ll data are approximate and may be changed without notice by TECO
Technical Details
| Supply | 230V-50Hz | |
| Cooling Power Consumption | 240 w | |
| Ecological Refrigerant | R290 | |
| Min and Max Flow Rate | 500 l/h – 800 l/h | |
| Tank Size | up to 500 l (water temp. 25°C – Room temp. 30°C – Heating load 0.5 w/l) |
|
| Dimensions (millimetres) | 310 (w) x 310 (d) x 416 (h) | |
| Dimensions (inches) | 12.2 (w) x 12.2 (d) x 16.38 (h) | |
| Weight | 16.5 kg | |
| Connections | fitting 3/4″ – 16mm int. tube diameter |
TK 1000 Aquarium Chiller
| Power supply | Water temp | Liters | US Gallons | COP*** |
|---|---|---|---|---|
| 50Hz | 25°C* | 1000 | 260 | 2,41 |
| 50Hz | 8°C** | 150 | 40 | 1,36 |
* The values reported in the table refer to the following conditions: room temp. 30°C, heating load of 0.3 w/lt.
** The values reported in the table refer to the following conditions: room temp. 30°C, heating load of 0.1 w/lt.
*** Coefficient of performance.
** The values reported in the table refer to the following conditions: room temp. 30°C, heating load of 0.1 w/lt.
*** Coefficient of performance.
| Power Supply | Power Consumption | Gas | Weight | Ambient temperature |
|---|---|---|---|---|
| 50Hz | 270W | R290 | 43,4 lb | 10°C – 38°C |
ll data are approximate and may be changed without notice by TECO
Technical Details
| Supply | 230V-50Hz | |
| Cooling Power Consumption | 270 w | |
| Ecological Refrigerant | R290 | |
| Min and Max Flow Rate | 500 l/h – 800 l/h | |
| Tank Size | up to 1000 l (water temp. 25°C – Room temp. 30°C – Heating load 0.3 w/l) |
|
| Dimensions (millimetres) | 310 (w) x 310 (d) x 458 (h) | |
| Dimensions (inches) | 12.2 (w) x 12.2 (d) x 18.03 (h) | |
| Weight | 19.7 kg | |
| Connections | fitting 3/4″ – 16mm int. tube diameter |

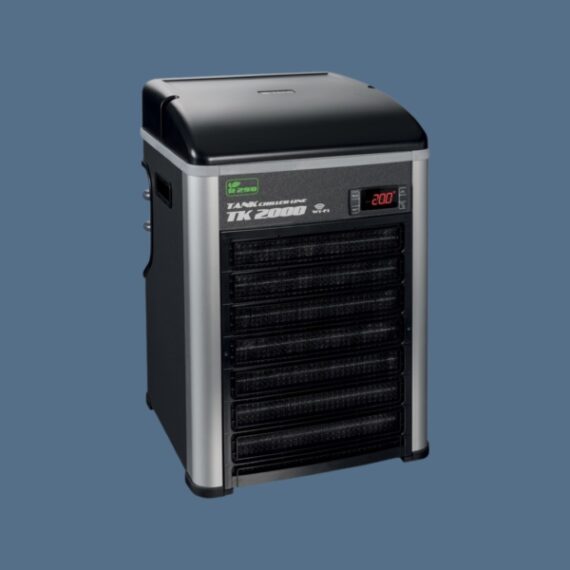

TK 2000 Aquarium Chiller
| Power supply | Water temp | Liters | US Gallons | COP*** |
|---|---|---|---|---|
| 50Hz | 25°C* | 2000 | 530 | 2,49 |
| 50Hz | 8°C** | 300 | 105 | 1,70 |
* The values reported in the table refer to the following conditions: room temp. 30°C, heating load of 0.3 w/lt.
** The values reported in the table refer to the following conditions: room temp. 30°C, heating load of 0.1 w/lt.
*** Coefficient of performance.
** The values reported in the table refer to the following conditions: room temp. 30°C, heating load of 0.1 w/lt.
*** Coefficient of performance.
| Power Supply | Power Consumption | Gas | Weight | Ambient temperature |
|---|---|---|---|---|
| 50Hz | 350W | R290 | 47,2 lb | 10°C – 38°C |
ll data are approximate and may be changed without notice by TECO
Technical Details
| Supply | 230V-50Hz | |
| Cooling Power Consumption | 350 w | |
| Ecological Refrigerant | R290 | |
| Min and Max Flow Rate | 500 l/h – 800 l/h | |
| Tank Size | up to 2000 l (water temp. 25°C – Room temp. 30°C – Heating load 0.3 w/l) |
|
| Dimensions (millimetres) | 310 (w) x 310 (d) x 500 (h) | |
| Dimensions (inches) | 12.2 (w) x 12.2 (d) x 19.69 (h) | |
| Weight | 21.4 kg | |
| Connections | fitting 3/4″ – 16mm int. tube diameter |
