Description

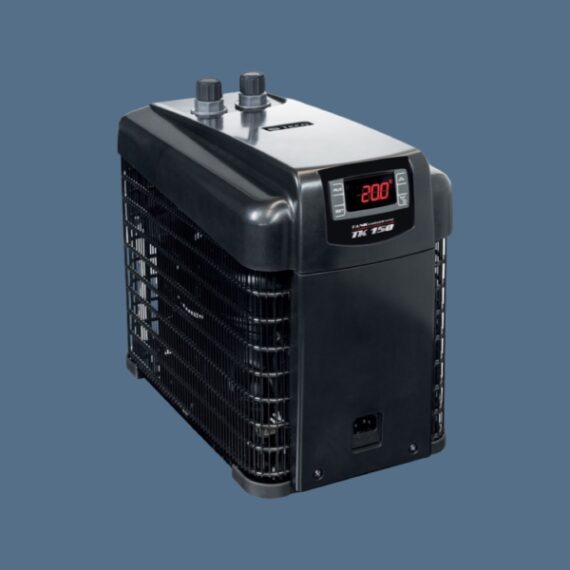

TK150 Aquarium Chiller
Efficient Cooling Technology
The exclusive use of internationally recognised high-performance compressors and of the titanium coaxial heat exchanger, ensures high performances. The set of technologies used allows you to decrease noise levels and achieve the highest COP-Coefficient Of Performance, contributing to significant energy savings.
Digital Thermostat
The setting of functions is intuitive and the temperature reading is accurate, resolution 0,1°C/1°F. The setting range is 5°C – 30°C (41°F – 86°F) and the temperature is kept constant with a maximum differential of 0,5 °C/0,5 °F. Displayed temperatures are in ° C or ° F and there are security alarms.
Efficient Design
The chiller, with its innovative design, is characterized by a solid structure designed to guarantee a perfect protection against rust. The user will appreciate the functionality of the shape and the compact size, which makes the chiller ideal also for confined spaces.
Unique Features
The “TECObody-condenser system” represents another major achievement: besides performing its main function as an integral part of the structure, the condenser confers an exclusive and original design to the chiller. Moreover, it makes the use of the filter unnecessary, thus eliminating the cleaning problems normally associated with it. The heater can not be installed in this model.
Power supply Water temp. Liters US Gallons COP**
50Hz 25° C* 150 40 1,19
*The values reported in the table refer to the following conditions: room temp. 30°C, heating load of 0.5 w/lt.
**Coefficient of performance
Power Supply Power Consumption Gas Weight Ambient temperature
50Hz 150 W R290 12.2kg 10°C – 38°C
All data are approximate and may be changed without notice by TECO.
Technical Details
Supply 230V-50Hz
Cooling Power Consumption 150 w
Ecological Gas R290
Min. Flow Rate 300 l/h
Tank Size up to 150 l
(water temp. 25°C – Room temp. 30°C – Heating load 0.5 w/l)
Dimensions (millimetres) 215 (w) x 361 (d) x 315 (h)
Dimensions (inches) 8.46 (w) x 14.21 (d) x 12.4 (h)
Connections fitting 1/2″ – 12mm int. tube diameter
